Product Features:

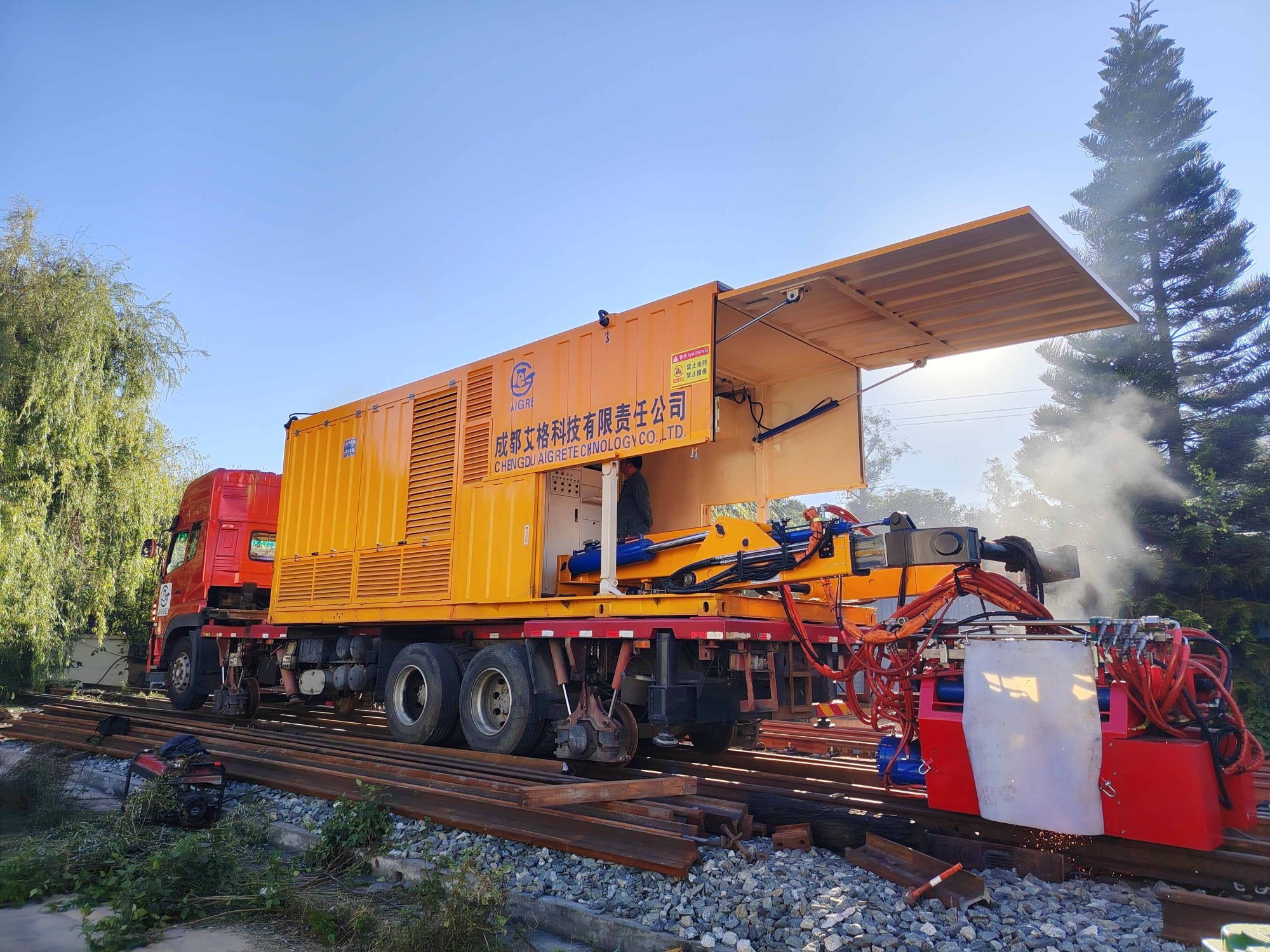

Primarily designed for flash welding of rail switch welds, this equipment features a specialized narrow-body clamp structure that enables operation in confined spaces with a minimum clearance of 130 mm.

Main Technical Parameters:

Maximum Weldable Rail Cross-Sectional Area (mm²): 10,000

Rated Pressure of Hydraulic System (MPa): 25

Rated Upsetting Force (kN): 80

Maximum Clamping Force (kN): 2,500

Weight of Welding Head (kg): 4,500

Generator Set: 400 kW power, 400 V (50 Hz)

Overall Dimensions of Welding Machine (mm): 7,270 (length) × 2,438 (width) × 2,668 (height)

Total Weight of the Machine: 21 tons (empty) / 22 tons (fully loaded)
